CDS storage? CLO2 degrading PP caps of reagent glass bottles.
CDS - Chlorine Dioxide Solution: Chlorine dioxide gas put in water
  • Page:
  • 1
  • 2

TOPIC:

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 28 Sep 2021 15:26 #71409

  • casper
  • casper's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 9
  • Thank you received: 7

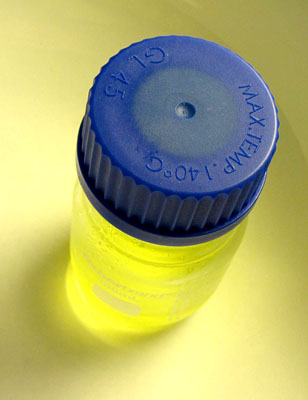

I got these really nice borosilicate reagent bottles with standardized GL45 PP caps on them from eBay. I thought I was set with the ultimate long(er)-term storage container, but after a few weeks I noticed the CDS eating away at the caps (see images).

I don't want to consume this CDS, as it obviously has reacted with the plastic of the cap. Does anyone know of a better GL45 cap material suitable for CLO2, or what do most you store your CDS in?

The borosilicate bottles are really nice, but the caps kind of ruined the setup :(





Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by casper.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 28 Sep 2021 17:41 #71414

  • stu77000
  • stu77000's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 544
  • Thank you received: 402
Ah crap, I just spent a boat load of cash on Amber Schott Bottles with Blue Screw GL45 Caps....

Please Log in or Create an account to join the conversation.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 28 Sep 2021 18:55 #71424

  • swensken
  • swensken's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 9
  • Thank you received: 2
@stu77000
Isn't it just bleaching the caps? I've seen that on many of my pet bottles but also on other caps. The gas is strong. :) But if it bleaches the cap, it's probably making it weaker too. :-/

Please Log in or Create an account to join the conversation.

Last edit: by swensken.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 28 Sep 2021 23:30 #71429

  • casper
  • casper's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 9
  • Thank you received: 7

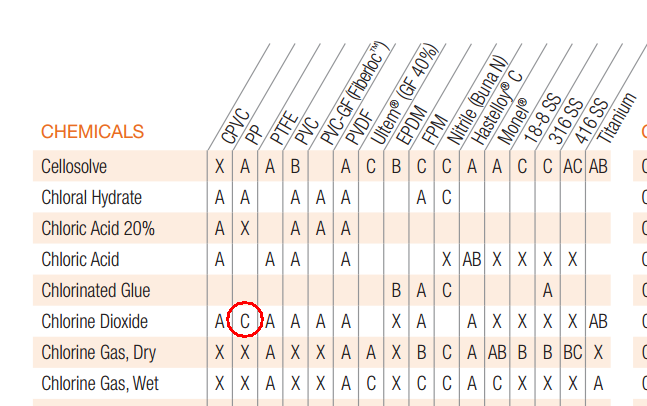

I just found a chemical resistance guide. Confirms PP is no good.
There must be other cap materials available though. Hmm.



Attachments:
The following user(s) said Thank You: JimH1954, Andy in Hawick

Please Log in or Create an account to join the conversation.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 29 Sep 2021 01:01 #71431

  • CLO2
  • CLO2's Avatar
  • Offline
  • Administrator
  • Administrator
  • Posts: 5556
  • Thank you received: 4391
I only see CLO2 staining in the photos. It does that to many plastics. When the cap in not in the presence of CLO2 gas, the stain will disappear.

Please Log in or Create an account to join the conversation.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 29 Sep 2021 16:28 #71440

  • casper
  • casper's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 9
  • Thank you received: 7

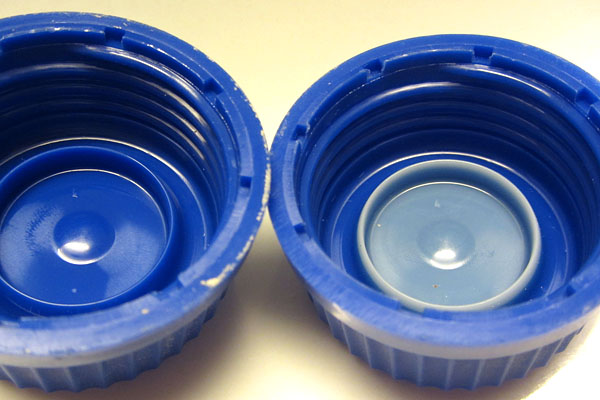

While it's true there was some yellowish staining, after 48 hours I can now clearly see there was also bleaching. See the image below compared to an untouched cap. Bleaching implies a chemical reaction, and this chemical reaction (as far as I know) implies there are new or different compounds formed.

Maybe this is not a problem, I don't know. But I DO know that when I consume this CDS I get arthritis in my fingers. Doing the same with MMS I don't get this problem. So I am wondering if there is a compound here which is producing inflammation. Mind you, I suffer from MCS (multiple chemical sensitivity). I am extremely hypersensitive to a long list of various things.

So this ..thing...whatever it is, perhaps it produces a reaction in me which is not a problem for others.

Anyway, for me this PP cap is not good enough. Still trying to figure out if there exists better materials. I've emailed a couple of screw cap manufacturers..waiting for their replies.

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by casper.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 29 Sep 2021 16:33 #71441

  • stu77000
  • stu77000's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 544
  • Thank you received: 402
@casper, perhaps what you can do is put a piece of plastic over the top of the bottle and screw the cap down over that.
The following user(s) said Thank You: Andy in Hawick

Please Log in or Create an account to join the conversation.

Last edit: by stu77000.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 30 Sep 2021 00:49 #71463

  • casper
  • casper's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 9
  • Thank you received: 7
@stu77000 Heh. I was just thinking about this! It's a good idea.

In fact I got some replies back now. I also emailed Andreas Kalcker not expecting a reply, but he replied with one line. PET.

Here's the summary of replies I got:

Kalcker: PET
Cap Manufacturer 1: Red GL45 caps with PTFE coated silicone seal
Cap Manufacturer 2: GL45 caps of either PBT or PFA with PTFE coated silicone seal
CLO2 Manufacturer: PETG

PET  = polyethylene terephtalate. I think this is what most drinking water bottles are made of. Cheap and easily available.

PTFE = synthetic fluoropolymer of tetrafluoroethylene. This is basically TEFLON. I checked its chemical resistance to CLO2 and everyone is reporting it as completely inert. This seems to be the best choice, but TEFLON does not have a good reputation otherwise, so not a huge fan. Most likely safe for this purpose though. Caps are expensive (seeing quotes of $5-8 a piece in packs of 10).

PETG  = Polyethylene terephthalate glycol. "Commonly known as PETG or PET-G, is a thermoplastic polyester that provides significant chemical resistance, durability, and excellent formability for manufacturing.". Very interesting material. Looks like some water bottles could be made out of this too.
www.acmeplastics.com/what-is-petg

Summary - poor mans's simple solution:
Get a PET or PETG bottle, cut our a circular piece to cover the mouth of the glass bottle and screw the cap over that.

The following user(s) said Thank You: Andy in Hawick, stu77000

Please Log in or Create an account to join the conversation.

Last edit: by casper.

CDS storage? CLO2 degrading PP caps of reagent glass bottles. 30 Sep 2021 06:00 #71470

  • stu77000
  • stu77000's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
  • Posts: 544
  • Thank you received: 402
@casper Thanks for the info, much appreciated.
The following user(s) said Thank You: casper

Please Log in or Create an account to join the conversation.
